FindNode

FindNode is a shell program on top of the core Selector package, the purpose of FindNode is to find the intended one or more UI elements (or Accessibility nodes) and extract information or perform actions on them.In short AAI replace coordinates with queries.

FindNode is part of the AAI project (Accessibility and Automation Integration), it consists of the following components:

  1. Query language, simple one line syntax language to search for intended nodes.
  2. FindNode (and Selector core) on each device.
  3. Object mode in one-to-many synchronization, send query of the node (or UI object) to all devices instead of coordination, click "OK" can run on all devices with different resolutions than click(100,100).
  4. UI Explorer to obtain node information and helper program to construct query, great to learn query language learning.
  5. AAIS, a simple language to perform automation on multiple devices.
  6. As part of the existing REST and JS API (e.g. devices.click("OK")).
  7. FindNode + JavaScript along with "device" and "devices" construct can create automation scripts.

Selector sits on top of Accessibility and UI Automator, each UI element or container of UI elements is identified by node or sets of nodes, each node has its ID that is unique on the current screen. Selector provides various ways to search for one or multiple nodes. once the nodes are acquired, many interesting things can be done such as obtain the texts/images or perform actions such as click on button or entering the text on the text field, all without coordinates. This allow one automation script to run on different resolutions and sizes which is not possible using coordinates. The coordinates of the nodes are acquired during the runtime.

For Example:

JS API: devices.click("OK") instead of devices.click(100, 200). Find node with text "OK", obtain coordinate and click on it. All done in runtime.

MDCC: Users click a button on the main device, the unique query of the button (e.g. "T:OK") will be sent to other devices, to search for the node and click. The intention is to provide various ways to locate nodes without using screen coordinates, there is no page up/down but "scrollToView" to locate a node, this way, the same script can run on different phones with different resolutions and screen size.

FindNode uses the JSON construct of Appium to carry out the JSON commands, the JSON format is:

{"cmd": "action", "action": "findnode", "params": {…}}

Every FindNode commands are carried out in "params" object.

Return value can have one of two types, successful run:

{"status":0, "value":"{…}"}

Or failure:

{"status":13,"value":"{<error message>}"}

TC provides "device.sendAai()" or "devices.sendAai()" to communicate with FindNode:

  • Send the "params" object.
  • Generate timeout error if FindNode does not return in certain time period.
  • For certain commands that takes longer than the default timeout, FindNode will extend the time to avoid timeout error.
  • Handle return value automatically (null on error, non-null on value, lastError() to get error message).
  • For multiple devices "devices", thread will be created, the same command will be sent to device thread.

Presumably you can do most of the task by using "device.sendAai()" and "devices.sendAai()", FindNode is a Appium's "handler", another handler "invoke" can use Java Reflection to access methods in UiDevice, UiObject2, AccessibilityNodeInfo and InteractionController.

With the introduction of AWU Beta in Version 9.0 (Update 50), AWU allows each device to run FindNode scripts independently with or without Total Control. AWU also reduces the complicated settings as before, just grant AWU Accessibility and file manager permissions.

Limitations

FindNode comes with several limitations:

  • Support portrait mode only, landscape mode will be introduced in the future.
  • Not everything will be able to identify at this time, depending on the design of app, may miss some of the nodes.
  • Horizontal scrolling or popup windows are not supported (less nodes or more nodes will be obtained).
  • Does not support multi-threaded, each execution has to be mutually exclusive: MDCC (object mode), terminal (or script), UI Explorer and part of REST API use FindNode.
  • Does not support UI elements in WebView objects, app such as Facebook and Youtube use WebView are not suitable for FindNode.

Query + Actions

Use our query language to find nodes on the screen and apply actions on the nodes found. We will cover Query and Actions in this manual.

For instance, to obtain the Android version in About Phone screen:

>> device.sendAai({query:"TP:basic&&T:Android version&&OY:1", action:"getText"})
{retval: '13'}
  • TP:basic template
  • T:Android version basic query
  • OY:1 expanded query

To click a button with "OK" label:

{query:"T:OK", action:"click"}

To obtain all the stock symbols:

{query:"R:.ticker", action:"getText"}


Query

Majority of the FindNode usages are about query, this is center piece of the FindNode (and part of AAI). It allows users to locate intended UI elements via different kind of useful queries on the Accessibility nodes. The entire screen is composed by many nodes, a node can be a smallest UI element or a container of smaller nodes, many are invisible. The entire screen is a tree structure starting from the single root node. Query will be performed to obtain the nodes that meet the criteria, the intent is to reduce the large number of nodes to one or few intended nodes, users can obtain information or apply actions to the nodes.

We developed a small query language that is portable among devices and scripts and powerful enough to locate most of the nodes. The format is JSON:

{query:"<key>:<value>&&<key>:<value>&&<key>&&<key>…"}

We accept "||" and "&&" as identical separator, in the future it can be changed. Since the query is AND relationship, the query needs to meet all criterion to become "matching nodes", use of "&&" is more logical. FindNode does not offer OR relationship but the underlying Selector package provides that capability. "templates" use that construct. For certain key, value is not required.

The query string is divided into 3 sections: template, basic query and extended query. "template" (TP) will generate the initial nodes, "basic query" (BQ) will perform query from node property one at a time, "extended query" (EQ) will take output from TP and BQ and perform query across multiple nodes.

To get Main storage free size

Can use "query" + "action":

>> device.sendAai({query:"T:Main storage&&OX:1", action:"getText"})
{retval: '402 GB free'}

Can use "optional query" (OQ):

>> device.sendAai({action:"getText(T:Main storage&&OX:1)"})
{retval: '402 GB free'}

Similarly, to go back to previous screen (left arrow), can use OQ:

>> device.sendAai({action:"click(T:Storage Analysis&&OX:-1)"})
{retval: true}

To obtain the Audio size, different queries can be mixed and still obtain the identical result:

>> device.sendAai({query:"TP:all&&T:Main storage&&VG:2&&XT:Audio&&OX:1", action:"getText"})
{retval: '77 MB'}

The parser will separate the query into TP, BQ and EQ and execute them in the following order:

  • TP: TP:all
  • BQ: T:Main storage
  • EQ: VG:2&&XT:Audio&&OX:1


Template (TP)

Template query (for lack of better name) is required key for query, it generate the nodes for intended purpose. Missing template will be defaulted to "TP:more", multiple templates are not allowed, here are different templates:

Name Description
all Return all nodes.
more "all" option with with layout nodes removed. This is the default if template is not defined.
basic “more” option with child count of zero (leaf nodes).
reduced Return "interesting" nodes (see UI Explorer "Optimized" mode).
findText,<text> Return nodes with certain text or description. findText needs an extra parameter to specify text to search.
anyText[,min][,max] Return for nodes with content in text, optionally with certain length.
anyDescription[,min][,max] Return for nodes with content in description, optionally with certain length.
textInput[,<hint text>] Return the nodes that are "editable" that is sorted from top-left to bottom-right. Use along side with "IX" for multiple text inputs. The optional text is hint text if it is available.
scrollable,[pos] Return scrollable nodes, for screen more than one scrollable area, the "position" can be used to identify which scrollable area to match.
line,<top|bottom>,<line number> Return nodes that is top or bottom of scrollable nodes.


Basic Query (BQ)

Basic query is queries that is purely based on the individual node information, BQ takes nodes generated from template (or default template if not specified) and apply queries. BQ is not required, if BQ is not defined, it will pass all nodes from templates to EQ.

The following are the basic queries that match information obtained from the nodes itself:

Name Description
P:<package name> Package name (S)
C:<class name> Class name (S)
R:<resource ID> Resource ID (S)
D:<text> Content description (S)
T:<text> Text (S)
IT:<number> Text input type (I)
CC:<number> Child count (I)
ID:<hex string> Node ID (S)
BI:[x, y] Return nodes contain (x,y)
BI:[x1, y1, x2, y2] Return nodes that enclosed by rectangle, x or y of -1 will be ignored
BP:<prop name> Return nodes that match boolean properties
TD:<text> Match text or description
HT:<text> Match hint text (will match getText() if not supported)

Since the query is always performed on the existing app on the screen, "P" should not be used. The "(S)" stands for String, "I" integer, "[x, y]" is a location and "[x1, y1, x2, y2]" is a rectangle (or bounds). I/S can accept both integer and String. String is more powerful.

The keys are case insensitive, we use uppercase to differentiate keys from values.



Expanded Query (EQ)

The following are the keys for expanded query, it usually works on multiple nodes return by BQ or template. The expanded query work from left to right, same key can be applied multiple time. EQ is optional. The following are the keys for EQ:

Name Description
BQ:<basic query> Perform basic query on multiple keys in BQ.
IX:<number> Return one node from list of matching nodes based on position.
OX:<number> Offset to neighbor nodes horizontally (positive – right, negative – left).
OY:<number> Offset to neighbor nodes vertically (positive – down, negative – up).
ON:<type> Different ways to pick one node out of list of matching nodes.
RN Return the optimized nodes from a list of matching nodes.
ST:<sort type> Return sorted nodes based on the position of the nodes on screen.
TX Return nodes that intersect with reference node horizontally.
TY Return nodes that Intersect with reference node vertically.
V:<value> Set the value of setText, setChecked and setProgress
VG:[level number] Return nodes in a same view group.
"X"<BQ key>:<value> Perform basic query on specific key in BQ.

All these queries are optional, you can pick and choose any field, if you are doing the query on the screen. The "(S)" stands for String, "I" integer, "[x, y]" array. I/S can accept both integer and String. String is more powerful.

The keys are case insensitive, we use uppercase to differentiate keys from values.



Matching List (ML)

After the query is performed, the matched nodes will be stored in Matching List (ML), nodes in ML are identified by node ID. Many actions use the nodes in the ML, some actions can change the ML. "save" and "load" and newer "push" and "pop" can used to save and retrieve saved ML. Use action:"getIds" to obtain the ML IDs. TX/TY/VG take one node and generate multiple nodes.

Another way to obtain the ML is to use "elements" array.

Previously search is always performed before action is started, without setting a "query", the default template can be used to construct ML, this is not effective if the action has nothing to do with nodes (e.g. openApp, function).

Starting version 16, delayed search is implemented, the search will only be performed when nodes are required.

Examples:

Previously, even query is not specified, implicitly it will apply search based on default template which is "TP:more", "getIds" will print out the node ID in ML.

>> device.sendAai({action:"getIds"})
{count: 11, ids: ['14801','1714c',...]}
>> device.sendAai({query:"TP:more", action:"getIds"})
{count: 11, ids: ['14801','1714c',...]}

Version 16's "delayed search", the search will be performed when "getIds" is called:

>> device.sendAai({action:"getIds"})
{count: 11, ids: ['14801','1714c',...]}

No search will be performed on openApp since the action does not involve ML:

>> device.sendAai({action:"openApp(Skype)"})
{retval: true}

Below example 2 searches will be performed, one is default template "TP:more", the other one is "TP:reduced". Version 16, one search of "TP:reduced" will be performed:

>> device.sendAai({action:"newQuery(TP:reduced)"})
{count: 8}

Use below command to go back to previous bahavior:

device.sendAai({action:"setConfig(selector:allowDelayedSearch,false)"})


"elements" property

"elements" accept an array of node IDs, the node IDs must be a valid node ID on the screen or it will generate error. When "elements" is specified, all the elements will be stored in ML, the search will not be performed. It is useful to apply actions on nodes in specific order. Each query with "elements" will traverse all nodes to locate corresponding node, try to put multiple IDs in the array instead of one at a time. Same node ID can appear on the elements. "elements" is the only that can compose "ML" directly, it is useful to combine with "forEach".

Examples:

device.sendAai({elements:["1234a", "5678b"], action:"getNodes"})

This query the digit buttons and build elements array and use "forEach" to click all buttons and print the result.

>> ids = device.sendAai({query:"T:/^[1-9]$/"}).ids
a71e,aadf,aea0,b622,b9e3,bda4,c526,c8e7,cca8
>> device.sendAai({elements:ids, action:"forEach(nsClick);getText(+R:.editText_result)"})
{count: 2, list: [{retval: [{retval: true},{retval: true},{retval: true},{retval: true},{retval: true},{retval: true},{retval: true},{retval: true},{retval: true}]},{retval: '789456123'}]}

To retrieve one node, can use "ID:<node ID>".

device.sendAai({query:"ID:1234a", action:"getNodes(all)"})


Testing

To find the nodes via Query is not very difficult, you need is "UI Explorer" and Terminal:

  • Node ID is important, it is usually unique to the application.
  • Terminal: Type: device.sendAai({query:"…"}) to find if it matches the node. There are many search options, there are more than one way to find nodes.
  • UI Explorer:
    • Can build query with query helper.
    • Experience different query to view the matching nodes.
    • Unlimited undo/redo to compare different queries.
    • Find properties inside the node.
    • The "Code" in UI Explorer is a best effort to locate a node, refer to action:"getUniqQuery" for more information.
  • Terminal: When in doubt, use UI Explorer to find node ID, use device.sendAai({elements:["<ID>","<ID>"…], action:"getNodes"}), this will help you to obtain more information.
  • Start with one device using "device.sendAai" change to multiple devices via "devices.sendAai", you can search the devices by using Device.searchObject() to locate the devices you need (e.g. all devices, devices in a group, specific devices).

Template in Detail

Template (TP) is a required field, TP returns list nodes based on the values, it is the initial list of nodes for BQ, EQ or actions. TP is a subclass of Selector, maybe able to allow users to define new template in the future. Several rules in TP:

  • One TP per query, two TP in a query will result an error.
  • If TP is not defined, a default template will be used. Default is "TP:more", can use setConfig(selector:defaultTemplate, <template>) to change the default template. Default template cannot contain template with required argument (e.g. TP:findText).
  • If TP returns null (findText cannot find text or textInput without any text input field), it will generate an error.
  • TP if contain arguments, use comma to separate arguments. TP:<template>,<argument>.
  • TP generated nodes will be saved into ML.


TP:all, more, basic, reduced

These templates go thru the nodes in entire screen:

  • all return all nodes including root node.
  • more "all" option with layout nodes removed. This is the default if TP is not defined in query.
  • basic "more" option with child count of zero.
  • reduced "more" option with "reduceNodes", analyze the nodes on screen and return crucial nodes.

UI Explorer: 3 selections:

  • Default TP:more
  • All TP:all
  • Optimized TP:reduced

E.g. The first getCount without argument, will get the count of "ML", without "query", by default is "TP:more", so it has the same count as "TP:more". "+TP:all" will modify the ML, that is why the 3rd "getCount" will return the number of nodes in the ML built by "+TP:all".

>> device.sendAai({actions:[
    "getCount",
    "getCount(+TP:all)",
    "getCount",
    "getCount(+TP:more)",
    "getCount(+TP:basic)",
    "getCount(+TP:reduced)"
]})
{count: 6, list: [{count: 237},{count: 242},{count: 242},{count: 237},{count: 76},{count: 58}]}


TP:anyText[,min[,max]], anyDescription[,min[,max]]

This template will return the text in anyText or description in anyDescription with non-null content. Optionally can specify the minimum and maximum length (inclusive) of the text found. If no max is specified, the maximum length will not be enforced. The min/max of zero is not allowed.

Examples:

>> device.sendAai({query:"TP:anyText", action:"getText"})
{retval: ['Calculator','AC','÷','×','DEL','7','8','9','-' ,'4','5','6','+','1','2','3','%','0','.','±','=']}
>> device.sendAai({query:"TP:anyText,1,1", action:"getText"})
{retval: ['÷','×','7','8','9','-','4','5','6','+','1','2','3','%','0','.','±','=']}


TP:findText,<text>

Return the nodes with content in text or description that matches specified text. Text argument is required or generate an error. It will accept similar argument as "T:<…>" in "BQ".

Examples:

>> device.sendAai({query:"TP:findText,/[0-9]/", action:"getText"})
{retval: ['7','8','9','4','5','6','1','2','3','0']}
>> device.sendAai({query:"TP:findText,/^[A-Z]{1,4}$/", action:"getText"})
{retval: ['TGT','INTC','WMT','T','AAPL','SBUX','TSLA']}
>> device.sendAai({query:"TP:findText,*T", action:"getText"})
{retval: ['TGT','WMT','T']}


TP:textInput[,<hint text>]

This template returns the nodes which are "editable", the optional hint text if available (need Android 8.0 or later). If no nodes are found, it will generate an error. Alternatively, you can use "BP:editable" to obtain the same results.

Examples:

Obtain all text field:

>>  device.sendAai({query:"TP:textInput"})
{count: 6, ids: ['e135','e8b7','f3fa','fb7c','106bf','10e41']}
>> device.sendAai({query:"BP:editable"})
{count: 6, ids: ['e135','e8b7','f3fa','fb7c','106bf','10e41']}
// Show hint text as text value, use "getHintText" to obtain hint text
>> device.sendAai({query:"TP:textInput", action:"getHintText"})
{retval: ['text','text','Number','Email','text password','Person Name']}

Locate the text field either thru index or hint text:

>> device.sendAai({query:"BP:editable&&IX:-1", action:"getHintText"})
{retval: 'Person Name'}
>> device.sendAai({query:"TP:textInput,text", action:"getText"})
{retval: ['text','text']}
Based on the hint of the text field: query:"TP:textInput&&T:name"

Use "setText" to change the content:

>> name = "john@noname"
>> device.sendAai({query:"TP:textInput,Person Name", action:`setText(${name})`})
{retval: true}
>> device.sendAai({query:"BP:editable&&T:Email", action:"setText(john@noname.com)"})
{retval: true}
>> device.sendAai({query:"TP:textInput&&IX:-1", action:"setText(John)"})
{retval: true}
>> device.sendAai({query:"TP:textInput&&T:text ", action:"setText(Hello)"})
{retval: true}


TP:line,<top|bottom>,<line number>

Currently, this only applies to app with scrollable container or TP:line will return null. FindNode will locate the UI elements outside of scrollable nodes, line mode will group UI elements into a series of lines, each line can have one or more nodes. Many applications have fixed UI elements on the top and bottom of the screen, specific node cannot located with conjunction of BQ or EQ. For instance "TP:line,top,1&&IX:2" will return the first line, second item or "TP:line,bottom,-1&&T:Chats" will return bottom of the line with Chats as text.

  • For non-scrollable apps such as calculator, will always return null.
  • Between bottom of the status line and top of the scrollable node is considered as top region, line number starts from 1. Negative line number return line in reversed order, -1 is the last line in the region.
  • Between bottom of the scrollable node and top of the navigation bar is considering as bottom region. Similarly, line number starts 1 or negative line number. "TP:line,bottom,-1" returns the nodes of the last line in that region (also likely the last line of the application).
  • Using out of bound line number will get null. (E.g. 2 lines at the bottom, TP:line,bottom,3 will get the null return, if do not know the number of lines, use negative number).
  • If one node height is similar to 2 vertical nodes height on the same line, the lower node will be placed in next line.
  • Many applications put the top line within the scrollable area, TP:line,top,<number> will return null.
  • Not interfere with "IX", the small red counter or red dot next to the nodes will be removed (not in a return list).
  • Line mode will enhance to include non-scrollable area in the future.

Examples:

>> device.sendAai({query:"TP:line,top,1"})
{count: 6, ids: ['1902b0','191936','192fbc','1cf0bc','19373e','194a03']}
To go back click the first item "IX:0":
>> device.sendAai({query:"TP:line,top,1", action:"click(IX:0)"})
{retval: true}
>>  device.sendAai({query:"TP:line,bottom,-1"})
{count: 5, ids: ['2be5b8','2c0b42','2c1a46','2c30cc','2c3fd0']}
>> device.sendAai({query:"TP:line,bottom,-1", action:"setText(BP:editable, Hello)"})
{retval: true}


TP:scrollable[,<position>]

This template returns the on-screen items (leaf nodes) of scrollable identified by "position". "position" is the number starts from 0, top to bottom. Can obtain better result with resource ID in scrollable nodes. Default position is zero. Will raise error if cannot find scrollable node on screen. "TP:scrollable" return the leaf node on one scrollable node, "BP:scrollable" will match all the scrollable nodes on the screen.

For scrollable each item (or row/column) may contain multiple values, work well with resource ID to return specific value of the items. For instance, query:"TP:scrollable&&R:.tv_name".

Examples:

To obtains all scrollable nodes in the current screen:

>> device.sendAai({query:"TP:scrollable"})
{count: 5, ids: ['1e434','5bbba','5bf7b','5d9c2','6f70e']}

"BP:scrollable" returns all the scrollable nodes on the screen:

>> device.sendAai({query:"BP:scrollable", action:"getNodes(B)"})
{count: 5, list: [{bounds: '[0,268][1440,2738]', id: '1e434'},{bounds: '[42,457][1440,1303]', id: '5bbba'},{bounds: '[42,457][1440,1303]', id: '5bf7b'},{bounds: '[0,1303][1440,1742]', id: '5d9c2'},{bounds: '[0,1958][1440,2738]', id: '6f70e'}]}

Return all title of the Settings (in Samsung phones):

>> device.sendAai({actions:["openAndroidSetting(Settings)", "newQuery(TP:scrollable&&R:android:id/title)", "getText"]})
{count: 3, list: [{retval: true},{count: 10},{retval: ['My Name','Connections','Connected devices','Modes and Routines','Sounds and vibration','Notifications','Display','Wallpaper and style','Themes','Home screen']}]}

Basic Query in Detail

Basic query takes ML from TP and perform node-level matching, one node at a time and create a shorter ML, discard nodes that do not match. BQ extracts data from Accessibility, it contains single-node information and actions. Extend more functionalities in the query for more powerful matching (special characters) and added shortcuts to make query more concise.



Special Characters in Query

For number such as inputType or childCount, it can either accept number or string:

  • <number>, "<number>" or "=<number>": Match exacting the number.
  • "> <number>": Match number greater than <number>.
  • "< <number>": Match number less than <number>.

String can be one of the following, "\n" to match newline character:

  • "<string>": Exact match on full text, case sensitive.
  • "(?i)<string>": Match case insensitive match in regular expression.
  • "ci:<string>": Match case insensitive in string.
  • "*<string>": Match string at the end, e.g. "*Group".
  • "<string>*": Match string at the beginning. e.g. "android.widget.*".
  • "*<string>*": Match any substring "*widget*".
  • "/<regex>/: Match any regular expression. E.g. "/ImageView|TextView/"

"!" is use at the beginning of string as NOT. "!0" = not zero. "C:!/Layout/", non-layout classes.

For simplicity in examples, the standard prefix of {"cmd": "action","action": "findnode", "params":{…}} will be omitted, we will list the examples in the "param" object and use JavaScript object notations to reduce number of double of quotes.



Shortcuts

Two shortcuts are available for class name (C) and resource ID (R), prefix with "." for substitutions of commonly use prefixes:

  • Class name (C): Prefix "." as substitution of "android.widget.". E.g. ".Button" = "android.widget.Button".
  • Resource ID (R): Prefix "." as substitution of "<package name>:id/". E.g. ".text_connect" = "com.sigma_rt.totalcontrol:id/text_connect".

The "." notation can only be used for normal matching and "!" matching, other types of matching (e.g. regular expression and wildcard) needs to use full form.



P:<package name>, C:<class name>, R:<resource ID>

All nodes contain package name and class name and optional resource ID. Since the matching is performed on the screen that running the application, "P" will default to the app running, other "P" does not make sense. So "P" is not required.



T:<text>, D:<text>, TD:<text>

Two most important keys, the node with information usually carry text or description, this is much more accurate and faster than OCR. "until" command can monitor if the text or description has been changed. T:<text> with special characters are often used. "TD" match text or description, match is successful if any one of them match.

device.sendAai({query:"T:OK", action:"click"})

Click OK button.



Bound In (BI):

Bound in takes screen coordinate or bounds and return the nodes based on the criteria below. This mainly for screen manipulation such as UI Explorer or debugging purposes. FindNode's object mode attempt to find nodes in devices independent of resolutions and sizes, "BI" coordinate-based will not work on all devices.

  • [x, y]: Will return the nodes with bounds contain (x, y).
  • [x, -1] or [-1,y] where one of them is -1: if x = -1, will ignore x and return nodes with bounds that contains y, similarly for y = -1, it will only match x. As if drawing a horizontal/vertical line on the y and x location, the nodes that touch the line will be returned.
  • [x1, y1, x2, y2]: Will match the nodes bounds within the rectangle specified by (x1, y1) - (x2, y2).

Example:

{query:"BI:[-1, 1000]&&IX:-1", action:"click"}
{query:"BI:[0, 0, 1000, 1000]", action:"getBounds"}


CC:<child count>, IT:<input type>

These are property found in the node, seldom use. CC is number of children, input type usually a number text field.



BP:<property>

Boolean property is important in the node, these properties carry true or false value. Multiple values are allowed, "!" in front of the property name will match false. Here are the properties:

  • checkable: if node contains checkbox or on/off switch, usually this comes with "clickable".
  • checked: if node contains checkbox/switch, true if it is checked/on or false if unchecked/off.
  • clickable: if node is clickable (usually a button or UI element response to click such as checkbox).
  • editable: if node allows text to be entered or modified.
  • enabled: if node is enabled, disable node does not response to actions. Usually display in gray color.
  • focusable: if node can be focused.
  • focused: if the node is focused, usually one focus per screen, pick this will return null or 1 node.
  • longClickable: If node is long clickable.
  • progressible: If the node is "progress" node such as slider.
  • selected: if the node has been selected.
  • scrollable: if node is scrollable node (container), the node can be scrolled, horizontally or vertically. Classes such as RecyclerView, ScrollView and ListView are scrollable.

Multiple boolean properties are allowed, separated by comma, it is optional to include within quotes or not.

Usage:

{query:"BP:<prop name>, !<prop name>, ..."}

Examples:

>> device.sendAai({query:"TP:textInput&&BP:clickable"})
{count: 1, ids: ['27ebc0']}
>> device.sendAai({query:"TP:textInput&&BP:'clickable,enabled'"})
{count: 1, ids: ['27ebc0']}
>> device.sendAai({query:"TP:textInput&&BP:clickable,enabled"})
{count: 1, ids: ['27ebc0']}

Use "getNodes(BP)" to output all Boolean properties:

>> device.sendAai({query:"TP:textInput&&BP:clickable,enabled", action:"getNodes(BP)"})
{count: 1, list: [{booleanProperties: {checkable: false, checked: false, clickable: true, editable: true, enabled: true, focusable: true, focused: false, longClickable: true, multiLine: true, scrollable: false, selected: false, visibleToUser: true}, id: '27ebc0'}]}

Starting API 14, "not" (!) is supported, you can not only find the true value but also false value by using "!".

Assuming loop thru this to obtain values until no further (arrow shows as gray):

>> device.sendAai({query:"R:.btn_next_period&&BP:!enabled", action:"getCount"})
{count: 1}

Reverse is not true:

>> device.sendAai({query:"R:.btn_next_period&&BP:enabled", action:"getCount"})
null
>> lastError()

No match found

"checkable" is usually "clickable", to remove checkable from the list:

>> device.sendAai({query:"BP:clickable", action:"getCount"})
{count: 26}
>> device.sendAai({query:"BP:checkable", action:"getCount"})
{count: 10}
>> device.sendAai({query:"BP:clickable,!checkable", action:"getCount"})
{count: 16}


Basic Query Example

device.sendAai({}) → device.sendAai({query:"TP:more", action:"getIds"})

Version 16, TP:more will be performed when "getIds" is called.

>> device.sendAai({})
{count: 9, ids: ['95b0','b779','bb3a','9d32','a0f3','a4b4','a875','ac36','aff7']}
>> device.sendAai({query:"TP:more", action:"getIds"})
{count: 9, ids: ['95b0','b779','bb3a','9d32','a0f3','a4b4','a875','ac36','aff7']}
>> device.sendAai({query:"T:/./", action:"getCount"})
{count: 25}
>> device.sendAai({query:"D:/./", action:"getCount"})
{count: 44}
>> device.sendAai({query:"TD:/./", action:"getCount"})
{count: 69}

Can include more complex query like:

>> device.sendAai({query:"T:/^.$/&&C:.Button&&R:.button_*", action:"getText"})
{retval: ['÷','×','7','8','9','-','4','5','6','+','1','2','3','%','0','.','±','=']}

If the match cannot be found, it will return null, use "lastError()" to display error message:

>> device.sendAai({query:"T:X", action:"getText"})
null
>> lastError()
No match found
>> device.sendAai({query:"X:X", action:"getText"})
null
>> lastError()
Error:Cannot find the key for "X"

Can check for null programmatically.

Expanded Query in detail

There are the queries left that is not BQ or TP. Keys in EQ are often calculations and heuristics that involve multiple nodes. EQ performs the keyed functions from left to right, manipulate along the way, hopefully at the end, the ML contains nodes that users want. The ML is uninteresting without actions, resulting ML will be passed to actions to apply actions or extract information. Keys can be applied multiple times "OX:1&&OX:1" is allowed.



Index (IX) M → O

IX:<number>. Return a node from ML nodes based on the position starting from zero (IX:0). IX can be negative value in which case the position is in reversed order (e.g. -1 is the last node).

Examples:

>> device.sendAai({})
{count: 9, ids: ['95b0','b779','bb3a','9d32','a0f3','a4b4','a875','ac36','aff7']}
>> device.sendAai({query:"IX:1"})
{count: 1, ids: ['b779']}
>> device.sendAai({query:"IX:-2"})
{count: 1, ids: ['ac36']}


Single Node Selection (ON) M → O

ON:<option> Return one node from multiple nodes in ML, currently 3 options are available. Only limited options at this time, will expand more options in the future.

These are the options:

  • first: Take the first node from the ML (Similar to IX:0).
  • last: Take the last node from the ML (Similar to IX:-1).
  • min: Pick the smallest node (in area) from the ML.


Offset (OX & OY) O → O

OX:<integer> and OY:<integer>. Use the offset to find neighboring node base on one reference node, OX find horizontal position, positive integer moves right, negative integer moves left. For OY, positive integer moves down, negative integer moves up.

Examples:

In About phones:

>> device.sendAai({query:"T:Model name&&OX:1", action:"getText"})
{retval: 'Galaxy S22 Ultra'}
>> device.sendAai({query:"T:Model number&&OX:1", action:"getText"})
{retval: 'SM-S908U1'}
>> device.sendAai({query:"T:Android version&&OY:1", action:"getText"})
{retval: '12'}

Another example:

>> device.sendAai({query:"T:5&&OX:1", action:"getText"})
{retval: '6'}
>> device.sendAai({query:"T:5&&OY:-1", action:"getText"})
{retval: '8'}

// OX & OY orders may get different results
>> device.sendAai({query:"T:0&&OY:-1&&OX:2", action:"getText"})
{retval: '×'}
>> device.sendAai({query:"T:0&&OX:2&&OY:-1", action:"getText"})
{retval: '−'}


ViewGroup (VG) O → M

ViewGroup: VG or VG:<level>. This command accepts optional level, if level is not specified, 1 will be used as level. It accepts a node (from query), will do parent traversal until a "group" is found, level is used to specify when to stop. A "group" is layout that occupy 85% of the screen width or "ViewGroup" in the class. ML will contain the nodes within the group, with the first node is ViewGroup/Layout node itself that contains all the nodes. It is very useful to logically group interesting nodes and use "addQuery" or BQ to search the nodes within the group. "setConfig(selector:viewGroupWidthRatio, )" to modify 85%.

Related action: "viewGroup".

Examples:

Select the right current before charging, first level of VG does not reach the intended nodes:

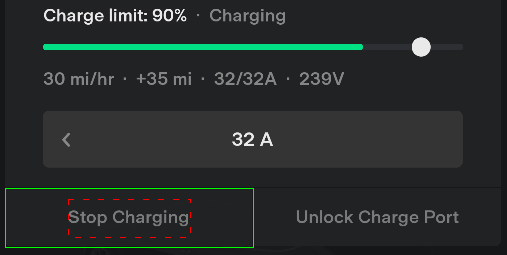

>> device.sendAai({query:"T:Start Charging&&VG"})
{count: 2, ids: ['53b16','53ed7']}

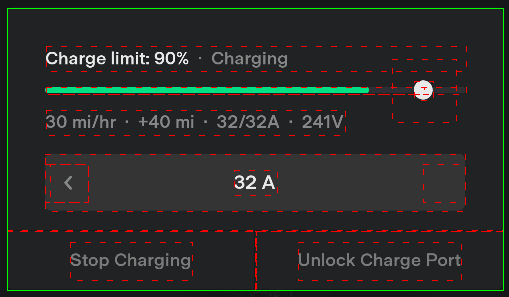

To obtain the charging group, use level 2. The first node will be the node that encloses all the nodes in the group (green rectangle). First node is useful to "showOnScreen" to ensure the entire group is visible on the screen.

>> device.sendAai({query:"T:Start Charging&&VG:2"})
{count: 24, ids: ['4a8af','4ac70','4b031','4b3f2','4bb74','4bf35','4c2f6','4c6b7','4ca78','4ce39','4d1fa','4d5bb','4d97c','4dd3d','4e0fe','4ec41','4f002','4f3c3','53755','53b16','53ed7','54298','54659','54a1a']}

To obtain the current Ampere:

>> device.sendAai({query:"T:Start Charging&&VG:2&&XT:/^[0-9]+ A$/", action:"getText"})
{retval: '32 A'}

To obtain and change, reduce by 1 Amp:

>> device.sendAai({query:"T:Start Charging&&VG:2&&XT:/^[0-9]+ A$/", actions:"getText;click(OX:-1);refresh;getText"})
{count: 4, list: [{retval: '32 A'},{retval: true},{retval: true},{retval: '31 A'}]}

Use "repeat" to reduce by 5 Amp:

>> device.sendAai({query:"T:Start Charging&&VG:2&&XT:/^[0-9]+ A$/", actions:"getText;repeat(5,nsClick(OX:-1));refresh;getText"})
{count: 4, list: [{retval: '32 A'},{retval: [{retval: true},{retval: true},{retval: true},{retval: true},{retval: true}]},{retval: true},{retval: '27 A'}]}


Intersect (TX & TY) O → M

Intersect: TX and TY. These commands take a node as a reference node and change the ML to contain all the nodes that intersect horizontally (intersectX) or vertically (intersectY). The matcher will make use of the bounds (top/bottom for intersectX, left/right for intersectY) of the reference node to search for intersected nodes.

The size (width or height) of the reference node is very important, if a wide reference node is picked, TY will match most of the nodes on screen. Pick reference node wisely.

This command will take first node and generate multiple nodes in ML, you can use "addQuery" to set more constraints on them.

See also: "intersectX" and "intersectY".

Examples:

On the offset calculator example above:

>> device.sendAai({query:"T:2&&TX"})
{count: 6, ids: ['bb4b','bf0c','c2cd','e0d5','e496','111a2']}
>> device.sendAai({query:"T:2&&TY"})
{count: 6, ids: ['1d115','1d4d6','a886','b3c9','bf0c','ca4f']}

But if you pick result as reference node with wide scroll entire screen, OX will get one node (itself) and OY will get all nodes.

>> device.sendAai({query:"R:.result&&TX"})
{count: 1, ids: ['1d4d6']}
>> device.sendAai({query:"R:.result&&TY"})
{count: 23, ids: ['1d897','1d4d6','d592','f39a','a4c5','a886','ac47','dd14','1029e','b008','b3c9','b78a','e0d5','bb4b','bf0c','c2cd','111a2','e496','c68e','ca4f','ce10','120a6','e857']}


Reduce nodes (RN) M → M

Reduce Nodes: RN. This is the one of the important features of FindNode, this feature accepts a list of node IDs, the intent to reduce the number of visible nodes. “TL”, "BL", “OX/OY” and "intersect" all use the reduceNodes. Note that the reduceNodes will pick smaller nodes if bigger nodes are fully contain the smaller nodes. For instance, if bigger ".Button" node encloses smaller ".TextView" node, the ".TextView" node will be selected over ".Button" node, the "click" on the .TextView node will still work. See UI Explorer "Optimize" mode.

Examples:

>> device.sendAai({}).count
242
>> device.sendAai({query:"RN"}).count
55

Related action:"reduceNodes".



Sort (ST) M → M

Sort: ST:X|Y|YX. Sort based on the bounds of the nodes, usually the way three is structure and the search, quite likely it has been ordered from top to bottom. Unless the order is important, there is little reason to sort.

X – compare the left bounds of the nodes

Y – compare the top bounds of the nodes

YX – compare top bounds and then left bounds of the nodes

Examples:

>> device.sendAai({query:"C:.Button", action:"getText"})
{retval: ['AC','÷','×','DEL','7','8','9','-','4','5','6','+','1','2','3','%','0','.','±','=']}
>> device.sendAai({query:"C:.Button&&ST:Y", action:"getText"})
{retval: ['AC','÷','×','DEL','7','8','9','-','4','5','6','+','1','2','3','%','0','.','±','=']}
>> device.sendAai({query:"C:.Button&&ST:YX", action:"getText"})
{retval: ['AC','÷','×','DEL','7','8','9','-','4','5','6','+','1','2','3','%','0','.','±','=']}
>> device.sendAai({query:"C:.Button&&ST:X", action:"getText"})
{retval: ['AC','7','4','1','0','÷','8','5','2','.','×','9','6','3','±','DEL','-','+','%','=']}

Related action: sort



Basic query(BQ) M → M

Basic query: BQ:'<basic query>' or "<basic query>". BQ is the command in EQ. Consider the following query (Obtained from UI Explorer Custom Query):

Examples:

Query: T:Overall Cpu Usage&&VG

"VG" is used to obtain the group, if we want to obtain the number of "Cpu Cores", the following query will not work:

T:Overall Cpu Usage&&VG&&T:Cpu Cores&&OX:1 → T:Cpu Cores&&OX:1&&VG

Two "T" commands are basic commands, second T will overwrite first T, since BQ commands applied before EQ. If we need the functionalities of basic query in EQ so the text can be matched. There 3 ways to do it:

  • Use BQ:'…' to include BQ keys. BQ:'T:Cpu Cores'.
  • Added a "X" prefix in basic query. XT:Cpu Cores.
  • Configure this flag "selector:allowBqAfterEq" to true, any BQ command after EQ will be done as part of EQ in sequence.

Both will work:

  • T:Overall Cpu Usage&&VG&&XT:Cpu Cores&&OX:1
  • T:Overall Cpu Usage&&VG&&BQ:'T:Cpu Cores'&&OX:1
>> device.sendAai({query:"T:Overall Cpu Usage&&VG&&XT:Cpu Cores&&OX:1", action:"getText"})
{retval: '8'}
>> device.sendAai({query:"T:Overall Cpu Usage&&VG&&BQ:'T:Cpu Cores'&&OX:1", action:"getText"})
{retval: '8'}

Starting version 14, there is a flag to allow any BQ after EQ command, in this example, "T:Cpu Cores" is considered as part of EQ

>> device.sendAai({action:"setConfig(selector:allowBqAfterEq, true)"})
{retval: true}
>> device.sendAai({query:"T:Overall Cpu Usage&&VG&&T:Cpu Cores&&OX:1", action:"getText"})
{retval: '8'}


Value (V) M → M

This should not be part of the query since it performs "actions" to set the values of the nodes, however it is convenient to construct a query with a value associated. In fact, this key will result the "set" actions to be performed to set the values. This only applies to the first node in the ML, it can be set either in "query" or "newQuery" action, for query, nothing will be returned if set correctly, wrong data type will result in error. 3 set types are supported:

Node Prop Action Type Examples
Checkable setChecked boolean V:true, V:false
progressible setProgress float/integer V:95.37, V:100
Editable setText string V:I am John

Examples:

To add new entry in Calendar:

By default, the action is "getIds":

>> device.sendAai({query:"T:Title&&V:Online Gaming Tournament&&OY:1&&OX:1&&V:true"})
{count: 1, ids: ['e72e2']}
>> device.sendAai({action:"newQuery(T:Title&&V:Online Gaming Tournament&&OY:1&&OX:1&&V:true);getIds"})
{count: 2, list: [{count: 1},{count: 1, ids: ['1a2e06']}]}
>> device.sendAai({query:"T:Title&&V:Online Gaming Tournament&&OY:1&&OX:1&&V:111"})
null
>> lastError()
Wrong format, expect boolean value

Actions

FindNode offers many action commands, use "function" can create more actions. "action" can accept a single string command or an array of strings with multiple commands. Query is optional, if query is not specified, it will include the default template. If query is specified, the query output will be saved to ML, the commands/actions require nodes will be obtained from underlying ML either via query or optional query, use action:"getIds" to obtain ML content. If no action is specified, action:"getIds" is used. Use of "action" and "actions" are identical.

Use "device.sendAai()" or "devices.sendAai()" to communicate with FindNode. For multiple devices, a thread will be created for each device to carry out the query and actions.

When sendAai encounter error from FindNode or timeout, it will return null with "lastError()" contain error message.

>> device.sendAai({query:"T:Not there", action:"getText"})
null
>> lastError()
No match found

For actions that require only one node (e.g. "click"), the first node in the ML will be chosen (ON, IX, OX and OY can change that). There are many commands in actions, improvements will be added on new versions that may introduce incompatibility, please use action:"version" to ensure the version supports the commands required. Some commands require additional arguments (the arguments will be enclosed in parenthesis). Currently, the following types of arguments are supported:

  • "String" or ‘String’: String enclosed by single quote or double quote.
  • <no quote>: If string does not contain comma or trailing spaces, no quote is required.
  • Boolean: true/false.
  • Integer: Number with or without decimal.
  • Double: Number with decimal points.

"function" can create more actions, see "function" command for explanation and examples.



Single Action

In single action, only one command is present in action. In this case, the returning result is in "retval" (or null if error is found).

device/devices.sendAai({query:"…", action:<action>})

Example:

>> device.sendAai({query:"T:Product name&&OX:1", action:"getText"})
{retval: 'Galaxy S22 Ultra'}
// Absence of query, the default query of "TP:more" will be applied
>> device.sendAai({action:"getText(T:Product name&&OX:1)"})
{retval: 'Galaxy S22 Ultra'}

Error message:
>> device.sendAai({action:"getText(T:Product name&&OX:2)"})
null
>> lastError()
Query Error: Node not found on offset

Multiple Actions

Multiple actions are allowed in FindNode, many of the FindNode operations are done in multiple actions, the multiple actions will be carried out from left to right, one at a time, the result is an array which store the output of each action, if one of the actions fail, it will return null with lastError() showing the index of the action (zero-based) that fail and error message. There are 2 ways to define multiple actions:

Array:

actions:["action 1", "action 2", …]

Semicolon in a String (version 14+):

actions:"<action 1>;<action 2>"

device/devices.sendAai({query:"…", actions:[<action 1>, <action 2>, …]})
device/devices.sendAai({query:"…", actions:"<action 1>;<action 2>, …"})

Example:

Here are 2 ways to execute multiple actions, the count will show how many command and list will show a list of output of actions. List[0] is the output of "setText", list[1] is the output of refresh and list[2] is the output of gettext.

>> device.sendAai({query:"TP:textInput", actions:["setText(Hello)", "refresh", "getText"]})
{count: 3, list: [{retval: true},{retval: true},{retval: 'Hello'}]}
>> device.sendAai({query:"TP:textInput", actions:"setText(Hello);refresh;getText"})
{count: 3, list: [{retval: true},{retval: true},{retval: 'Hello'}]}

Error message will show the position (zero-based) of the error:
>> device.sendAai({query:"TP:textInput", actions:["setText(Hello)", "refresh", "noAction", "getText"]})
null
>> lastError()
[2 - noAction] Invalid action: noAction

Variables in Actions and Query

If arguments of an action are determined at runtime, there are 3 ways to do variable substitutions:

  • JavaScript String manipulation functions. Apply to action and query.
  • JavaScript template literals: Apply to action and query.
  • aaix helper function: Simple helper function to reconstruct string with variables.

If you want to use variable in the action commands, can use "+" to concatenate multiple items, with quotes, it can become cumbersome:

JavaScript string functions:


var input = "Hello"
>> "setText('" + input + "')"
setText('Hello')
>> 'setText("' + input + '")'
setText("Hello")
>> 'setText(' + input + ')'
setText(Hello)

>> device.sendAai({query:"TP:textInput", action:["setText('" + input + "')", "click(OX:2)"]});
{count: 2, list: [{retval: true},{retval: true}]}

JavaScript template literals

Starting version 14, variable substitution (or expression) can be apply to string with backtick with ease, since it is basic construct of JavaScript, it can apply to both query and actions. With the introduction of multiple actions in string (separated by ";"), the substitution is much simpler:

Below is an example, it is good idea to surround ${input} with quotes in case input contains space, with the

>> device.sendAai({query:"TP:textInput", action:`setText("${input}");click(OX:2)`})
{count: 2, list: [{retval: true},{retval: true}]}

To retrieve all numbers in calculator:

>> var text = "/^[0-9]$/"
>> device.sendAai({query:`T:${text}`, action:"getText"})
{retval: ['7','8','9','4','5','6','1','2','3','0']}

Calling function to obtain class and description:

>> var c=()=>".CheckBox"
>> var x="T,D"
T,D
>> var d=()=>"Sunday"
>> device.sendAai({query:`C:${c()}&&D:${d()}`,action:`getNodes("${x}")`})
{count: 1, list: [{description: 'Sunday', id: '509a7', text: 'S'}]}

>> var disp=()=>"getNodes('${x}')"
>> disp()
getNodes('T,D')
>> device.sendAai({query:`C:${c()}&&D:${d()}`,action:`${disp()}`})
{count: 1, list: [{description: 'Sunday', id: '509a7', text: 'S'}]}

aaix:

A simple helper function on pre-version 14 to make actions easier to write, with the introduction of JavaScript template literals, there is no reason to use "aaix".

>> aaix("setText", input)
setText("Hello")
>> aaix("sendKey", tcConst.keyCodes.KEYCODE_HOME, 0)
sendKey(3, 0)

>> device.sendAai({query:"TP:textInput", action:[aaix("setText", input), "click(OX:2)"]})
{count: 2, list: [{retval: true},{retval: true}]}
>> device.sendAai({action:aaix("sendKey", tcConst.keyCodes.KEYCODE_HOME, 0)})
{retval: true}

If the argument is string, below 3 examples are identical:

action:["intersectX(OY:1, IX:2)", "getText"]
action:["intersectX('OY:1', 'IX:2')", "getText"]
action:[aaix("intersectX", "OY:1", "IX:2"), "getText"]

Most of the actions have optional query string in first argument, for instance:

{query:"T:John", action:"click"}
{actions:["newQuery(T:John)", "click"]}	→ {action:"click(+T:John)"}
{actions:["addQuery(T:Mary)", "click"]}	→ {action:"click(T:Mary)"}

The added query string will make command more concise. "newQuery" prefixed by "+" will clear ML, make the search and reconstruct the ML. "addQuery" will search based on the existing ML.



Special Character in Action Parameters

There are several characters in action parameters that are meaningful for FindNode parser:

  • Single or double quotation marks to surround the text with space and comma. The parser cannot handle if one single or double quotation is used, even the text in surround by quotes. Text such as "I'm John", "John's book" will generate error in parser.
  • Comma: commas are used to separate multiple arguments. Text with comma needs to be surrounded by quotes.
  • Semicolon: Semicolon is used to separate multiple actions within a single string.

Starting version 16, these 4 characters can be escaped by "\\":

setText(I\\'m John)

setText(John\\'s Book)

Since FindNode parser consider unknown text type in parentheses is considered as text, you do not need to protect text inside parentheses, just use escaped character:

>> device.sendAai({query:"T:Field 7&&OX:1", action:"setText(I\\'m John\\, she is Mary\\;);getText"})
{count: 2, list: [{retval: true},{retval: 'I'm John, she is Mary;'}]}

Domino pizza's app is "Domino's", prior version 16, it cannot be run, now it can use escape character:

>> device.sendAai({action:"openApp(Domino\\'s)"})
{retval: true}


Synchronous Actions

Great efforts have been put in to ensure the actions are synchronous, when a "click" is called, not only ensure the click is pressed synchronously, it will wait for certain "events" to ensure the rendering "starts" to happen, cannot ensure the rendering is completed. FindNode offers several ways to perform such check:

  • Action commands such as "click": it should work most of the time.
  • "waitQuery": if the new window takes very long time to complete the rendering, use this command to check if the new node is available, add action command after waitQuery, this will ensure the node is found and ready to accept action.


Optional Query (OQ)

Actions require nodes will obtain from the ML, actions require one node, will obtain the first node from ML. However, users can change the behavior by adding option query (OQ) in actions.

E.g.{query:"T:OK", action:"click"} → {action:"click(T:OK)"}

All OQ is optional, if OQ is not specified, the actions will take the nodes from the ML. If actions require one node (e.g. click), the first node in the ML will be used, if the actions support multiple nodes (e.g. getNodes or getText), the entire ML is used.

OQ is regular query language with different types identified by different prefixes, OQ likes other queries can generate one or multiple nodes, couple of query types will modify ML. Here are the supported 3 prefixes:

  • No prefix, apply the query from ML. ML is not change (Similar to "addQuery" action).
  • "+": New query, new ML (Similar to "newQuery" action).
  • "*": Same as regular query, the results will replace the ML.

Assuming calculator, the numbers 1 to 9 in 3 rows, "7,8,9", "4,5,6" and "1,2,3" (top to bottom):

>> device.sendAai({query:"T:/[3-9]/", actions:["getText(T:5)", "getText"]})
{count: 2, list: [{retval: '5'},{retval: ['7','8','9','4','5','6','3']}]}
>> device.sendAai({query:"T:/[3-9]/", actions:["getText(+T:5)", "getText"]})
{count: 2, list: [{retval: '5'},{retval: '5'}]}
>>  device.sendAai({query:"T:/[3-9]/", actions:["getText(*T:5)", "getText"]})
{count: 2, list: [{retval: '5'},{retval: '5'}]}

Here is the difference between regular and "*":

>>  device.sendAai({query:"T:/[3-9]/", actions:["getText(OX:1)", "getText(OX:1)", "getText"]})
{count: 3, list: [{retval: '8'},{retval: '8'},{retval: ['7','8','9','4','5','6','3']}]}
>>  device.sendAai({query:"T:/[3-9]/", actions:["getText(*OX:1)", "getText(*OX:1)", "getText"]})
{count: 3, list: [{retval: '8'},{retval: '9'},{retval: '9'}]}

It looks like "*" and "+" is similar, consider the following, the "*" matches the list from "ML" (T:2 is not in ML), "+" search the entire screen content.

>>  device.sendAai({query:"T:/[3-9]/", actions:["getText(+T:1)", "getText"]})
{count: 2, list: [{retval: '1'},{retval: '1'}]}
>> device.sendAai({query:"T:/[3-9]/", actions:["getText(*T:1)", "getText"]})
null
>>  lastError()
[0 - getText] Query Error:No match found

Since regular query (no prefix) and query with updating ML ("*" prefix) will use ML, use of "TP" is only allowed in "newQuery" or "+" prefix:

>>  device.sendAai({query:"T:/[3-9]/", actions:["getText(TP:all)", "getCount"]})
null
>>  lastError()
[0 - getText] Query Error:Key "TP" is not permitted in this query
>>  device.sendAai({query:"T:/[3-9]/", actions:["getText(+TP:all)", "getCount"]})
{count: 2, list: [{retval: [{},{},{},{},{},{},{},'Calculator',{},{},{},{},'AC','÷','×','DEL','7','8','9','-','4','5','6','+','1','2','3','%','0','.','±','=']},{count: 32}]}
>>  device.sendAai({query:"T:/[3-9]/", actions:["getText(*TP:all)", "getCount"]})
null
>>  lastError()
[0 - getText] Query Error:Key "TP" is not permitted in this query

Get Commands


getBounds (M)

Return the bounds (format: [left, top, right, bottom]) of the nodes in ML, it returns 2 arrays one with all the IDs the other one with all the bounds.

Usage:

getBounds[(<query>)]

Return:

The array of bounds, each bound is an array of 4-tuples: [x1, y1, x2. y2].

>> device.sendAai({query:"T:/[0-9]/", action:"getBounds"})
{bounds: [[18,1158,370,1521],[370,1158,722,1521],[722,1158,1074,1521],[18,1521,370,1884],[370,1521,722,1884],[722,1521,1074,1884],[18,1884,370,2247],[370,1884,722,2247],[722,1884,1074,2247],[18,2247,370,2610]], count: 10, ids: ['98d1','9c92','a053','a7d5','ab96','af57','b6d9','ba9a','be5b','c5dd']}


getBoolProp (O)

Return the Boolean property of a node, it will return "editable", "progressible", "clickable", "checkable", "scrollable" or "longClickable". If no property is found, it will return null.

Usage:

getBoolProp [(<query>)]

Return:

The array of string properties.

>> device.sendAai({query:"T:/12:30\\sPM/&&VG", action:"getBoolProp(T:Every day&&OX:1)"})
{retval: ['checkable','clickable']}
>> device.sendAai({query:"T:/12:30\\sPM/&&VG&&PQ:'T:Every day&&OX:1'", action:"getBoolProp"})
{retval: ['checkable','clickable']}
>> device.sendAai({query:"T:ci:calculator", action:"getBoolProp"})
null
>> lastError()
No boolean property is found


getBoolPropInAncestors (O)

Similar to getBoolProp except it traverse parent to its parent until it reaches the top node tree.

Usage:

getBoolPropInAncestors [(<query>)]

Return:

The array of array of property and node ID or null if not found.

>> device.sendAai({query:"T:John", action:"getBoolPropInAncestors"})
{boolProp: [['clickable','3622e'],['scrollable','105cd']], count: 2}


getChecked (O/M)

These commands apply to nodes with "checkable" nodes. Typically, toggle controls, checkboxes or radio buttons are checkable. For instance, class name of ".Switch" or ".Checkbox" are checkable.

Usage:

getChecked [(<query>)]

Return:

If input is one node, it will return true/false in "retval", if multiple nodes, retval will contain the array of true/false, for non-checkable nodes, it will show as "N/A". Return null if none of the checkable node is found. "BP:checkable" to find nodes that is checkable, "BP:checked" to find nodes that have been checked.

See also: setChecked

>> device.sendAai({action:"getChecked(D:Sunday&&TX)"})
{retval: [false,true,true,true,true,true,false]}

If do not wish to use description, can use class to search, no other UI element is having class of ".CheckBox":

>>  device.sendAai({action:"getChecked(C:.CheckBox&&IX:0&&TX)"})
{retval: [false,true,true,true,true,true,false]}

To find all the checked description:

>> device.sendAai({action:"getDescription(D:Sunday&&R:.day_button_0&&TX&&XBP:checked)"})
{retval: ['Monday','Tuesday','Wednesday','Thursday','Friday']}


getDescription/getText/getHintText (O|M)

Simpler version of "getNodes", much easier to return obtain the content of text, description and hint text.

The actions will detect one or multiple nodes, it will return the value if one node is detected otherwise it will return the array of text/description or hint text.

Usage:

getDescription [(<query>)]

getHintText [(<query>)]

getText [(<query>)]

Return:

Return an array of text/description/hint text in retval if multiple nodes are found, return text/description in retval if one node is found.

>>  device.sendAai({query:"TP:line,bottom,-1", postAction:"getText"})
{retval: ['Chats','Calls','Contacts','Notifications']}
// One value will not return an array
>> device.sendAai({query:"TP:line,bottom,-1&&IX:1", postAction:"getText"})
{retval: 'Calls'}

>> device.sendAai({query:"BP:editable", action:"getText"})
{retval: ['text','text','Number','Email','text password','Person Name']}
>> device.sendAai({query:"BP:editable", action:"setText(T:Number, '100');setText(T:text password, secretWord)"})
{count: 2, list: [{retval: true},{retval: true}]}
>> device.sendAai({query:"BP:editable", action:"getText"})
{retval: ['text','text','100','Email','••••••••••','Person Name']}
// getHintText will maintain the value of the original hints, getText does not
>> device.sendAai({query:"BP:editable", action:"getHintText"})
{retval: ['text','text','Number','Email','text password','Person Name']}


getFocus

Return the node receiving focus ("focusable" in getNodes(BP)) (usually text field or slider) or null if no node gains focus. If node is found, it will set the ML to the found node.

Usage:

getFocus

Return:

Return "node" will node ID if found otherwise return null.

Example:

To enter the next line from the existing line

>> device.sendAai({action:["getFocus", aaix("setText", username), "addQuery(OY:1)", aaix("setText", password)]})
{count: 4, list: [{node: '67693'},{retval: true},{count: 1},{retval: true}]}


getIds (M)

This is the default action if action is not defined, this command will return count and array of the ML IDs.

Usage:

getids [(<query>)]

Return:

count and array of IDs.

>> device.sendAai({})
{count: 26, ids: ['7708','d8a2','e7a6','ef28','824b','860c','89cd','8d8e','914f','9510','98d1','9c92','a053','a414','a7d5','ab96','af57','b318','b6d9','ba9a','be5b','c21c','c5dd','c99e','cd5f','d120']}
>> device.sendAai({action:"getIds(C:.Button)"})
{count: 4, ids: ['8dc5','9547','9908','9cc9']}


getNodes (M)

This is used to retrieve the information of nodes. The fields can determine what to display. "getNodes" will refresh the node before retrieving information.

Usage:

getNodes

getNodes([<query>] [,<fields>])

Arguments:

fields: The optional "fields" is used to define the fields to return, multiple fields in "fields" are separated by comma. Since it has comma inside the "field", you need to use the quote. String The valid field identifiers are:

  • P: Package name (S)
  • C: Class name (S)
  • R: Resource ID (S)
  • D: Description (S)
  • T: Text (S)
  • IT: Input type (I)
  • CC: Child count (I)
  • RI: RangeInfo, provide more information about the type, min, max, current of widget such as SeekBar (slider), use "setProgress" command to change the value.
  • BP: All boolean properties in the node.
  • B: Return [left top][right bottom] bounds of the node (S)
  • All: Everything

Return:

Count and array of node information.

>> device.sendAai({action:"getNodes(T:/[0-9]/,'R,T')"})
{count: 10, list: [{id: 'a773', resourceId: '.button_seven', text: '7'},{id: 'ab34', resourceId: '.button_eight', text: '8'},{id: 'aef5', resourceId: '.button_nine', text: '9'},{id: 'b677', resourceId: '.button_four', text: '4'},{id: 'ba38', resourceId: '.button_five', text: '5'},{id: 'bdf9', resourceId: '.button_six', text: '6'},{id: 'c57b', resourceId: '.button_one', text: '1'},{id: 'c93c', resourceId: '.button_two', text: '2'},{id: 'ccfd', resourceId: '.button_three', text: '3'},{id: 'd47f', resourceId: '.button_zero', text: '0'}]}
>> device.sendAai({query:"C:.SeekBar", action:"getNodes(RI)"})
{count: 1, list: [{id: 'b6f0', rangeInfo: {current: 0, max: 100, min: 0, type: 0, typeString: 'int'}}]}
>> device.sendAai({query:"C:.SeekBar", action:"getNodes(BP)"})
{count: 1, list: [{booleanProperties: {checkable: false, checked: false, clickable: false, editable: false, enabled: true, focusable: true, focused: false, longClickable: false, multiLine: false, scrollable: false, selected: false, visibleToUser: true}, id: 'b6f0'}]}


getPackageName

Return the current running package name.

Usage:

getPackageName

Return:

Package name in "retval".

>> device.sendAai({action:"getPackageName"})
{retval: 'com.google.android.gm'}


getProgress (O)

Return the values of the progress type of UI element such as slider (shorthand of "getNodes(RI)"):

Usage:

getProgress [query]

Return:

the RangeInfo in "retval" of a progressible node, return null if the node is not progressible node:

RangeInfo has one of 3 types: "float" – floating point between min and max, "int" integer between min and max and "percent" between 0 and 1. "current" contains the current value.

>> device.sendAai({action:"getProgress(C:.SeekBar)"})
{retval: {current: 41, max: 100, min: 0, type: 0, typeString: 'int'}}

See also: setProgress



getQuery/getUniqQuery (O)

Accept one node and attempt to generate a query to match the node (or multiple nodes). The query returned from "getQuery" can match multiple nodes, useful to get the text or description from multiple nodes. The query returned from "getUniqQuery" will match only one node, the query obtained will be sent to other devices to locate the nodes. So far, it is rudimentary, we will develop better query string in the future:

  • Will use the first node of the matching list (query or element) as the reference node.
  • The output is not fully optimized, for instance, it does not use template.
  • If multiple nodes are found, "getUniqQuery" will add "IX" to identify the single node, this is error prone especially for applications that do not use resource ID, IX can be large number, any change in UI may impact the accuracy.
  • UI Explorer’s "Code" button use this command to display the query string.
  • If offset (OX|OY) is used, it will search for neighboring node with text information (e.g. T:<text>).
  • If the text or description information is dynamic, use ignoreText/ignoreDescription.
  • -For text and description, if the length is longer than 30 characters, it will list the first 30 characters and add "*" at the end, use setConfig(text:maxQueryLength, <length>) to change it. E.g. If the text of the node is "The quick brown fox jumps over the lazy dog", the query generated will be: "T:The quick brown fox jumps over*".

Usage:

getUniqQuery/getQuery - Default is to use text and description as part of the query.

getUniqQuery/getQuery(<true/false>) – true to ignore text in search query.

getUniqQuery/getQuery(<true/false>, <true/false>) – true on second argument to ignore description in search query.

Return:

return query string.

To obtain query for each node:

>> device.sendAai({query:"T:Controls&&TX"}).ids.forEach(
    x => print(device.sendAai({elements:[x],action:"getUniqQuery"}).query)
)
T:Controls&&OX:-1
T:Controls
T:Controls&&OX:1

>> var query = device.sendAai({query:"T:AAPL", action:"getQuery(true)"}).query
>> query
C:.TextView&&R:.ticker&&CC:0
>> device.sendAai({query:query, action:"getText"})
{retval: ['MSFT','INTC','TGT','T','AAPL','SBUX','TSLA','CSCO']}

Query Commands

The following commands with one exception (waitQuery) will involve ML.



push/pop & load/save (M)

These commands store and retrieve the ML, this is only useful for multiple commands, push/save the ML, newQuery + actions, pop/load to retrieve last save ML and continue. save/load is there for compatibility reason since they do not have limit number of ML to store. In fact, in implementation, "save" and "push", "load" and "pop" are the same. You can use multiple "save" and "load".

Usage:

push

pop

save

load

Return: Always return "retval" of true, will generate error if stack has nothing to pop.



intersectX/intersectY (O → M)

If query is specified, the first node of the query will be used for intersect otherwise ML first node will be used. This command will take one node and generate more nodes and store in ML.

Usage:

intersect?[(<query>)]

Return:

true /false: if the operation is successful. If the operation is successful, it will return "count"

If "post query" is specified, the output of post query (see "addQuery") will be stored as ML. If "post query" is not specified, the output of intersect will replace the ML.

See also: "TX" and "TY" queries for more explanation.

Example:

Assuming calculator app

>> device.sendAai({actions:["intersectX(T:3)", "getText"]})
{count: 2, list: [{count: 4},{retval: ['1','2','3','%']}]}

"intersect Y" may include other none visible nodes such as result or viewgroup.

>>  device.sendAai({actions:["intersectY(T:3)", "getText"]})
{count: 2, list: [{count: 8},{retval: [{},{},{},'×','9','6','3','±']}]}

Add a regular expression to ensure at least one character is visible:

>>  device.sendAai({actions:["intersectY(T:3)", "addQuery(T:/.+/)", "getText"]})
{count: 3, list: [{count: 8},{count: 5},{retval: ['×','9','6','3','±']}]}

This will work too:

>> device.sendAai({actions:["intersectY(T:3)", "getText(T:/.+/)"]})
{count: 2, list: [{count: 8},{retval: ['×','9','6','3','±']}]}


viewGroup (O → M)

This command is similar to "VG" query, will accept a level and query. Query if defined is used to identify the first node to seach for the group. Similar to "VG", it will change ML. Previously this command is called "getViewGroup".

Usage:

viewGroup

viewGroup([<query>,] <level>)

Return:

If ViewGroup is found, it will return the count in the ML, if ViewGroup is not found, it will return null.

See also: Query "VG".

>> device.sendAai({query:"T:Battery&&VG", action:"getText(T:/\\d%/)"})
{retval: '92% available'}
>> device.sendAai({actions:["viewGroup(T:Battery)","getText(T:/\\d%/)"]})
{count: 2, list: [{count: 6},{retval: '92% available'}]}


reduceNodes (M → M)

It is identical to "RN" query, no argument. Will return number of nodes after results as "count".

Usage:

reduceNodes

Return:

Return the number of resulting nodes in "count".

See also: Query "RN".

>> device.sendAai({query:"TP:reduced"}).count
54
>> device.sendAai({action:"reduceNodes"})
{count: 54}


Sort (M → M)

Sort based on the node bounds. It is identical to "ST" query, same argument as ST.

Usage:

sort(X|Y|YX)

Return:

Return true/false in "retval".

See also: Query "ST".



newQuery/addQuery/waitQuery/exists

All accept query string, "newQuery" will start the new query and recreate ML (similar to "+" in OQ). "addQuery" perform search within ML, place the resulting nodes in ML (similar to "*" in OQ). "waitQuery" will not change the ML, it has a timeout, will make sure the query is fulfilled before timeout expire or it will return null. Since waitQuery does not change ML, if you want to change ML like "newQuery", use "newQuery" with timeout. "exists" will return true or false to indicate if query will find matching nodes.

For instance: "VG" will usually follow by "addQuery" instead of "newQuery". On the other hand, click to open a new window, will need "newQuery".

newQuery(<query>[, <timeout>])

addQuery(<query>)

exists(<query>)

waitQuey(<query>[, <timeout>]) // Default timeout = 2000ms

Return:

newQuery and addQuery return the size of resulting ML in "count". When timeout expire waitQuery will return null otherwise "retval" will contain true.

Example:

The following commands will obtain the same result but "newQuery" will change the ML and impact subsequent actions that use ML:

>> device.sendAai({action:`waitQuery(T:${text},10000);click(T:${text})`})
{count: 2, list: [{retval: true},{retval: true}]}
>> device.sendAai({action:`newQuery(T:${text},10000);click`})
{count: 2, list: [{count: 1},{retval: true}]}

Action Commands

Commands in this section perform actions to the nodes.



click, nsClick, click2, longClick

Various kinds of clicks on the node, this is synchronous click, will make sure screen is starting to refreshed when the control is returned.

  • click: click in the center of the node.
  • longClick: hold and click longer (500ms) to simulate a long click.
  • click2: click at the random location in the node.

All the above clicks will monitor the events for the changes of the screen after the click is performed, if the screen is not changed, these clicks will fail and eventually timed out. If the screen is not changed after the click is performed, use "nsClick":

  • nsClick: Performed the click but does not monitor the events.

Usage:

click/nsClick/click2/longClick [(<query>)]

Return:

true or false to indicate if the operation is successful.

click, nsclick, click2, longClick

click(<query>), nsclick(<query>), click2(<query>), longClick(<query>)

Example:

>> device.sendAai({query:"T:5", action:"click"})
{retval: true}
>> device.sendAai({action:"nsClick(T:5)"})
{retval: true}


forEach (M)

The action loop through each node in ML and execute the provided actions, one at a time. Several rules apply:

  • Cannot execute actions that can be changed the ML or it will generate an error.
  • All optional query (OQ) with prefix ("+" or "*") will result with error.
  • All actions loop through will only see one node.
  • The return value:
    • For single action in the argument, "retval" array will be used to store the output for each node.
    • For multiple actions, the JSON name will contain the array of array, inner array will be the execution results of a node, output array will contain array of all nodes.

For multiple actions, "forEach" takes the name of JSON object, the value defines the actions either in array or string will semicolon delimiter. For single action, can put the action name in the argument.

Usage:

forEach(<action name>)

forEach(<JSON name>)

Return:

  • For single action in the argument, "retval" array will be used to store the output for each node.
  • For multiple actions, the JSON name will contain the array of array, inner array will be the execution results of a node, outer array will contain array of all nodes.

Examples:

The first line runs "getText" once, the second line run "getText" 4 times.

>> device.sendAai({query:"T:1&&TX", action:"getText"})
{retval: ['1','2','3','%']}
>> device.sendAai({query:"T:1&&TX", action:"forEach(getText)"})
{retval: [{retval: '1'},{retval: '2'},{retval: '3'},{retval: '%'}]}

>> device.sendAai({query:"R:.ticker&&T:/TSLA|AAPL|INTC|CSCO/", actions:"forEach(getTicker)", getTicker:"refresh(OX:1);getDescription(OX:1)"})
{getTicker: [[{retval: true},{retval: '160.25'}],[{retval: true},{retval: '190.41'}],[{retval: true},{retval: '50.51'}],[{retval: true},{retval: '29.36'}]]}

>> device.sendAai({query:"R:/.day_button_[0-6]/", action:"getText"})
{retval: ['S','M','T','W','T','F','S']}
>> device.sendAai({query:"R:/.day_button_[0-6]/", action:"forEach(setChecked(true))"})
{retval: [{changedCount: 0},{changedCount: 0},{changedCount: 0},{changedCount: 1},{changedCount: 1},{changedCount: 0},{changedCount: 1}]}

In the example document, for calculator, it fills in all operations in "elements" and use "forEach(nsClick)" to key in calculation.



function/funcExists/funcDelete/funcReset

This action command will create a new action composed:

  • Once the function is created, the function can be called by "action:", "forEach" and "repeat". Do not create the same name as the existing command or it will never be called.
  • It supports batch file style variable substitutions, %<number> corresponding to calling argument. Like normal action arguments, substitution can be string, floating point, Boolean (true/false) and integer. Insufficient arguments will use the defaults when "function" is called to create action. Any % follow without a number will not be interfered, if "%1" is needed as part of the argument (e.g. setText), use "%%" to represent "%", so, "%%1" will become "%1", no substitution will be performed.
  • It supports default value, when a function is setup, new argument will be the default values. The default value will be used if the action argument is less than the default number of arguments.
  • Do not use recursive (or function calls resulting in a loop), it will likely result in a crash.

Usage:

Create new function:

function(<action name in JSON>(arguments)) <JSON name>:<actions> in [] or ";" or single action

Delete created function:

funcDelete(<function name>)

Return true/false whether the function exists:

funcExists(<function name>)

Reset – delete all functions

funcReset

Return:

Return null if error occur or it will return true in retval.

Example:

Assuming we want to use calculator to add 2 single-digit values:

>> device.sendAai({action:"function(add(1,2))", add:"click(T:%1);click(T:+);click(T:%2);click(T:=);getText(R:.editText_result)"})
{retval: true}

This accepts 2 substitutions %1 and %2, the default value of %1 is "1", the default value of %2 is "2".

The following will substitute first argument value with %1 ("3"), second argument with %2 ("4"), thus click "3", "+", "4", "=".

>> device.sendAai({action:"add(3,4)"})
{add: [{retval: true},{retval: true},{retval: true},{retval: true},{retval: '=7'}]}

The following does not specify argument, both default values will be used, thus click "1", "+", "2", "=".

>> device.sendAai({action:"add"})
{add: [{retval: true},{retval: true},{retval: true},{retval: true},{retval: '=3'}]}

One argument is specified, %1 will be "9" and %2 will be the default value of "2", click "9", "+", "2", "=".

>> device.sendAai({action:"add(9)"})
{add: [{retval: true},{retval: true},{retval: true},{retval: true},{retval: '=11'}]}

Check for function existence and delete a function.

>> device.sendAai({action:"funcExists(add)"})
{retval: true}
>> device.sendAai({action:"funcDelete(add)"})
{retval: true}
>> device.sendAai({action:"funcExists(add)"})
{retval: false}
>> device.sendAai({action:"add(9)"})
null
>> lastError()
Invalid action: add

Another example: This function "sendText" is used enter text in text field and click send button:

>> device.sendAai({action:"function(sendText(Hello))", sendText:[
    "newQuery(TP:textInput)",
    "setText(%1)",
    "click(OX:2)"
]})
{retval: true}
>> device.sendAai({action:"sendText(How are you?)"})
{sendText: [{count: 1},{retval: true},{retval: true}]}
>> var input = "Good morning"
>> device.sendAai({action:`sendText(${input})`})
{sendText: [{count: 1},{retval: true},{retval: true}]}

The function below will find a name, click to chat screen, send a text using "sendText" function just created, click back key to go back to main screen:

>> device.sendAai({action:"function(findAndSend)", findAndSend:"scrollIntoView(T:%1);click;sendText(%2);sendKey(Back)"})
{retval: true}
>> device.sendAai({action:"findAndSend(John Doe, Nice to meet you)"})
{findAndSend: [{retval: true},{retval: true},{sendText: [{count: 1},{retval: true},{retval: true}]},{retval: true}]}

Another example: To obtain the SolarEdge production from mySolarEdge application:

>> device.sendAai({actions:"function(getProduction)", getProduction:[
    "openApp(mySolarEdge)",
    "waitQuery(T:Lifetime,20000)",
    "newQuery(R:.pv_power_now)",
    "getText",
    "sendKey(Back)",
    "sendKey(Back)"]});
{retval: true}
>> var info = device.sendAai({action:"getProduction"})
{getProduction: [{retval: true},{retval: true},{count: 1},{retval: '5.89 kW
Solar Power Now'},{retval: false},{retval: true}]}

To obtain the production, use info.getProduction[3].retval, SolarEdge will return W or kW depending on the amount of output, can write a simple function to get solar production:

function getProduction() {
    var p = device.sendAai({action:"getProduction"});
    if (p != null) {
        var prodText = p.getProduction[3].retval;
        var matches = /^(\d+(\.?\d+)?) (W|kW)/.exec(prodText);
        if (matches != null) {
            return matches[3] == 'kW' ? Math.round(matches[1]*1000) : matches[1];
        }
    }
    return -1;
}

>> getProduction()
5890


refresh (M)

The accessibility nodes information is cached, if the screen has been updated, the cache information may not be accurate, use "refresh" to force to reread the nodes information.

Usage:

refresh [(<query>)]

Return:

Return count and true (always return true)

Example:

>> device.sendAai({query:"T:Overall Cpu Usage&&OX:1", actions:["getText", "sleep(2000)", "refresh", "getText"]})
{count: 4, list: [{retval: '29'},{retval: true},{retval: true},{retval: '78'}]}


repeat (M)

This command is useful for repeated actions, it shares the action input (JSON or single action) and similar return values as "forEach", it will repeat the action/actions execution in given number of runs. The maximum repeat count is 20. Use "setConfig" on "action:repeat:maxCount" to increase the maximum repeat count.

Usage:

repeat (<count>, <action name>)

repeat (<count>, <JSON name>)

Return:

  • For single action in the argument, "retval" array will be used to store the output for each run.
  • For multiple actions, the JSON name will contain the array of array, inner array will be the execution results of a run, outer array will contain all runs.

Examples:

This command clicks 5 "1" in calculator:

>> device.sendAai({action:"repeat(5,click(T:1))"})
{retval: [{retval: true},{retval: true},{retval: true},{retval: true},{retval: true}]}

To set the charging current of EV car:

Reduce by 1 Amp:

>> device.sendAai({action:"click(T:/[0-9]+ A/&&OX:-1)"})
{retval: true}

Reduce by 5 Amp:

>> device.sendAai({action:"repeat(5, click(T:/[0-9]+ A/&&OX:-1))"})
{retval: [{retval: true},{retval: true},{retval: true},{retval: true},{retval: true}]}

Reduce and verify:

>> device.sendAai({query:"T:/[0-9]+ A/", action:"getText;repeat(5,click(OX:-1));refresh;getText"})
{count: 4, list: [{retval: '27 A'},{retval: [{retval: true},{retval: true},{retval: true},{retval: true},{retval: true}]},{retval: true},{retval: '22 A'}]}


scrollIntoView → (M)

Accept query string and scrolling direction, will try to match the query by scrolling up/down based on provided direction, when one or multiple nodes are found, it will return, if the match cannot be found, it will return null with an error. The scroll will use page up/down with the maximum of 30 pages (controlled by setConfig(navi:maxPageScroll, )), the scroll may take some time, this command will automatically lengthen the timeout in "sendAai" until it is done. In order to make script be able to run in any resolutions and sizes, use scrollIntoView is better than Page Up/Down. This action will also make the first node in the matching nodes fully visible and modify the ML, ML may contain more than one node.

Usage:

scrollIntoView(<query>) // Default down

scrollIntoView(<query>, <direction>)

Arguments:

<direction> can be one of the following, if not specify, the default is "down".

"down": Starting from current location and search by scrolling down.

"up": Starting from current location and search by scrolling up.

"top": Fast scroll to the top of page and search by scrolling down.

"bottom": Fast scroll to the bottom of page and search by scrolling up.

Return:

Will return null if the query cannot be found otherwise will return true, ML will be set to the first matched node ID.

Example:

Scroll the current application until "John" is found and click on the found node.

>> device.sendAai({actions:["scrollIntoView(T:John)", "click"]})
{count: 2, list: [{retval: true},{retval: true}]}


sendKey

sendKey accepts key code or meta state and send the key to the screen (not node), the UI element with the focus will receive the keycode and meta, examples are text field or on-screen keyboards. sendKey also offers shortcut, a text string some of the common key codes. Not all key codes will generate characters, several special key codes will bring in new window such as go back, appswitch or go to home screen. The key codes and meta states are displayed in Android KeyEvent class. "sendKey" sends to the screen, not a specific node so ML is not involved. The shortcuts mapping or keycode/meta will not work in AWU setting.

There are several shortcuts that are used as "global action keys", these keys offer different set of features, it will work on all environment.

Usage:

sendKey(<key code>)

sendKey(<key code>, <meta state>)

sendKey(<shortcut>)

Arguments:

key code and meta state: are in integer, "shortcut" is in single string. Regarding the back key, if in Sigma input method input mode, single "back" key will send 2 "back" keys to the window, first back key to dismiss the input method, second back key to dismiss the window. Use "setConfig(sigmaInput:backKeyAutoDismiss, false)" to change the behavior. The two back keys will not work on global action key.

Here are the shortcuts (some of them may not work depending on the Android version) that maps to keycode (with meta of zero), these shortcuts are mappings to the keycode. It will not work on AWU:

appswitch switch apps

back send back key

backspace send backspace key

delete send delete key

enter send enter key

home send home key

menu send menu key

search send search key

Here are the global action keys, "home" and "back" exist in both tables, if AWU is enabled, global actions will be used:

allApps Show app drawer of all the apps

back send back key

home send home key

lockScreen Lock the device screen

notifications show notifications screen

powerDialog Show the power dialog screen (power off, restart, emergency call)

recentApps show recent Apps screen

quickSettings show quick setting screen

takeScreenshot Take screenshot and store in photo gallery

Return:

return the status of the operation in true/false.

Example:

tcConst contains key code and meta state information. For example, the following 3 examples will get the same result:

sendKey('back')
sendKey(4)
sendKey(tcConst.keyCodes.BACK)

This will type "A":

>> device.sendAai({preAction:aaix("sendKey", tcConst.keyCodes.A, tcConst.keyCodes.META_SHIFT_ON)})
{retval: true}


setChecked (M)

This command applies to nodes with “checkable” nodes. Typically, toggle controls are checkable, checkboxes or radio buttons, example of class can be “.Switch” or “.Checkbox”. For radio button, setChecked(false) will not work since FindNode does not know which radio button to click to disable the existing radio button.

Usage:

setChecked(true|false)

setChecked([query], true|false)

Arguments:

"setChecked(true|false)", since there is no permission to set the checked value, it will click the node to toggle the value if value needs to be changed. It accepts multiple nodes, will ignore non-checkable nodes.

Returns:

setChecked returns "changedCount", how many checkable nodes have been changed. Starting version 16, to be consistent with other commands, it will return true/false to indicate at least 1 node has been changed (not found).



setProgress (O)

To set the value of the slider bar, the min, max, type, value can be obtained by "getNodes('RI’)",

Usage:

setProgress(<number>)

setProgress(<query>,<number>)

Arguments:

<number>: Integer or decimal to set the value determined by "type", "min" and "max"

Return:

true/false: return true if value has been successful set or false if set to the same value or out of range. Return null if the node is not progress node.

See also: getProgress

Example:

Set the display brightness to 50%:

>> device.sendAai({query:"T:Brightness&&VG&&PQ:'C:.SeekBar'", action:"getProgress"})
{retval: {current: 85983232, max: 267386880, min: 0, type: 0, typeString: 'int'}}
>> var max = device.sendAai({query:"T:Brightness&&VG&&PQ:'C:.SeekBar'", action:"getProgress"}).retval.max
267386880
>> device.sendAai({query:"T:Brightness&&VG&&PQ:'C:.SeekBar'", action:aaix("setProgress", max/2)})
{retval: true}

In sound setting, set all 4 sound volumes to 50%:

>> device.sendAai({query:"C:.SeekBar"}).ids.forEach(
    x => {
        var max = device.sendAai({elements:[x], action:"getProgress"}).retval.max;
        device.sendAai({elements:[x], action:`setProgress(${max/2})`});
    }
)


setText (O)

If the node is text field, it will enter "input string" value to the input text field programmatically, no Sigma input method is involved.

For Android 11 or later, if the message contains "\n" or "\r\n" as the suffix of the input string:

  • Often the "Search" field does not contain button to perform the search. This will send "Search" action after the text is entered.
  • For App with "Enter as Send", it will enter and send the message without clicking send button.

Usage:

setText([query], <input string>)

setText([query], +<input string>)

Arguments:

Input string: By default the text field will be cleared before entering the string, if the first letter is "+", it will add on to the existing string. For multiple lines of text field, use "\n" to skip to next line.

Return:

true or false to indicate if the operation is successful.

Examples:

>> device.sendAai({query:"BP:editable", action:"getText"})
{retval: ['text','text','Number','Email','text password','Person Name']}
>> device.sendAai({query:"BP:editable", action:"setText(T:Number, '100');setText(T:text password, secretWord)"})
{count: 2, list: [{retval: true},{retval: true}]}
>> device.sendAai({query:"BP:editable", action:"getText"})
{retval: ['text','text','100','Email','••••••••••','Person Name']}
>> device.sendAai({query:"BP:editable", action:"getHintText"})
{retval: ['text','text','Number','Email','text password','Person Name']}

>> device.sendAai({query:"TP:textInput&&IX:1", action:"setText('Hello')"})
{retval: true}
>> device.sendAai({query:"TP:textInput&&IX:0", action: "setText('+ World')"})
{retval: true}
>> device.sendAai({query:"TP:textInput", action: "setText('Hello\n')"})
{retval: true}

Enter Emoji via String.fromCodePoint:

>> device.sendAai({query:"TP:textInput",action:aaix("setText", String.fromCodePoint(0x1f60a))})
{retval: true}

Or mix with normal message:

>> device.sendAai({query:"TP:textInput", action:aaix("setText",
"hello" + String.fromCodePoint(0x1f643, 0x1f644) + "world")})
{retval: true}


showOnScreen (O)

This will ensure the first node will appear fully on the screen, if associated UI element is partially displayed, it will scroll until the UI element is fully visible on the screen. If the node is too large to fit into the scrollable area, it will generate an error.

Usage:

showOnScreen [(<query>)]

Return:

true to indicate the screen has been scrolled, false to indicate the node is already fully visible on screen, nothing is done. Return null if the node is too large to fit into scrollable area.



sleep

This command will pause execution on the milliseconds specified, it is useful for time related wait before actions.

Usage:

sleep(<time>)

Arguments:

time: Specify time to wait in milliseconds.

Return:

return true



until

until will wait for certain condition based on the option specified, if the condition is met, it will return true, if timeout expired it will return null with error. Currently 2 types are supported:

until([query], gone, <timeout>)

"gone" will wait until the specified node (first element in ML or OQ) disappear.

Example:

The following will wait until reset button is disappeared, both formats are supported:

>> device.sendAai({query:"R:.btn_img_reset_time", action:"until(gone, 20000)"})
{retval: true}
>> device.sendAai({action:"until(R:.btn_img_reset_time, gone, 20000)"})
{retval: true}

until([query], changed, T|D, <timeout>)

Will check until timeout or text (T) or description (D) content is changed.

Example:

The following example check if Nasdaq index is changed:

>> device.sendAai({query:"T:Nasdaq*&&OY:1", actions:["getDescription", "until(changed,D,30000)","getDescription"]})
{count: 3, list: [{retval: '10,989.25'},{retval: true},{retval: '10,988.50'}]}
>> device.sendAai({actions:["until(T:Nasdaq*&&OY:1, changed, D, 30000)","getDescription"]})
{count: 2, list: [{retval: true},{retval: '10,988.50'}]}

Other Commands



openApp/restartApp /closeApp version 11

The specified app name can be a package name or the application display name (name show on the launcher), if multiple applications with the same name is matched, the first matching application will be used. No partial match is allowed, the match is case insensitive. "closeApp" with no argument will close the existing application. "openApp" and "restartApp" will accept optional query and timeout, after the application is launched, it will enter into "waitQuery" to wait for the query to match before return the control back to the caller. The timeout is in milliseconds.

Work has been done to ensure the openApp or restartApp will return the control when app stop in stable state (rendering is done, waiting for user input), try "restartApp" and "openApp" in terminal, if open/restart take a long time, use the associated query and timeout.

"restartApp" = "closeApp" + "openApp"

"restartApp" is useful for automation script since it will always start the app in a known state.

"openApp" will run the application, if the application is resided on the memory, it will bring the app to the front, if the app is not in the memory, it will act as start the application anew. "closeApp" will close the application (force-close).

Usage:

openApp(<name>[,<query>[,<timeout>]])

restartApp(<name>[,<query>[,<timeout>]])

closeApp(<name>)

closeApp

Return:

retval: true for success or null with lastError() when application is not found, fail to start app or query does not match.

Example:

with time measurement on (in ms)

>> device.sendAai({action:"openApp(Skype)"})
{retval: true, timeFindNode: 3040}
>> device.sendAai({action:"openApp(Skype)"})
{retval: true, timeFindNode: 672}
>> device.sendAai({action:"restartApp(Skype)"})
{retval: true, timeFindNode: 2859}

"mySolarEdge" will always take a long time to open application, use query and timeout:

>> device.sendAai({action:"openApp(mySolarEdge,T:Lifetime,15000)"})
{retval: true, timeFindNode: 13098}


openAndroidSetting

Will open the android system setting window based the setting name specified, the setting name will be converted to uppercase letter, " " will be converted to "_" and name will add "_SETTINGS" to suffix if it is not already there:

Provide part of the setting in https://developer.android.com/reference/android/provider/Settings, use "listAndroidSetting" for list of settings available in this command. This command will open the setting window. If the setting is not found, it will return null.

Usage:

openAndroidSetting(<Setting name>)

For instance: The following command open wireless setting:

device.sendAai({action:"openAndroidSetting(wireless)"})

The following open Apps setting:

>> device.sendAai({action:"openAndroidSetting(manage applications)"})
{retval: true}

"MANAGE_APPLICATIONS_SETTINGS", "manage applications setting ", "Manage Application" are the same.



listAndroidSettings

This command returns the list of settings as an array.

Usage:

listAndroidSettings

Return:

List of valid settings in array.

>> device.sendAai({action:"listAndroidSetting"})
{list: ['SETTINGS','ACCESSIBILITY_SETTINGS','ACTION_CONDITION_PROVIDER_SETTINGS', ..., 'ZEN_MODE_PRIORITY_SETTINGS']}
>> device.sendAai({action:"listAndroidSetting"}).list.length
70


setConfig, getConfig, unsetConfig

Change the value of the FindNode (or Selector), various values are identified by name, use "getConfig" to obtain the value, "setConfig" to change the value and "unsetConfig" to revert back to the original value.

getConfig(<name>) → name: <name>, value:<value>

setConfig(<name>, <value>) → retval: true

unsetConfig(<name>) → retval: true

If the name is not found, it will return null.

Name Type Default Description
text:maxQueryLength Integer 30 Length of text and description limit to be replaced with "*".
navi:maxPageScroll Integer 30 Maximum number of page swipes to find a node
navi:scrollVertSteps Integer 40 Number of steps on page swipes, low value is fast and incurrate, higher value is slow and accurate
navi:slowScrollSteps Integer 100 Number of swipe steps to make node fully visible
sigmaInput:backKeyAutoDismiss Boolean true Sigma input method, send extra back key to dismiss invisble keyboard.
selector:defaultTemplate String more The default template if template is not specified in query.
selector:allowBqAfterEq Boolean false If set to true, will allow basic query that defined after expanded query will be carried out as part of expanded query in sequence (left to right).
selector:allowDelayedSearch Boolean true Enable dalayed search, search when it is needed
action:repeat:maxCount Integer 20 Increase the number of repeat count
action:enhancedParser Boolean true Enable parser to support escape characters

Command Reference

FindNode Command Reference
Version 16
Action Name OQ Arguments Input Output ML Change Prop
Get Commands
getBounds Yes - All Nodes ids:[<id>], bounds:[<bounds>] - -
getBoolProp Yes - First Node retval:[<prop>] - -
getBoolPropInAncestors Yes - First Node retval:[<prop>] - -
getChecked Yes - One Node
All Nodes
retval:<boolean>
retval:[boolean|N/A]
- -
getCount Yes - All Nodes count:<count> - -
getDescription Yes - One Node
All Nodes
retval:<text>
retval:[<text>]
- -
getHintText Yes - One Node
All Nodes
retval:<text>
retval:[<text>]
- -
getFocus No - None node:<ID> - -
getIds Yes - All Nodes ids:[<ID>] - -
getNodes Yes [fieldList(S)] All Nodes list:[<info>] - -
getPackageName No - None retval:<PackageName> - -
getProgress Yes - First Node retval:<rangeInfo> - -
getQuery No [ignoreText(B)]
[ignoreText(B)]
First Node query:<query String> - -
getText Yes - One Node
All Nodes
retval:<text>
retval:[<text>]
- -
getUniqQuery No [ignoreText(B)]
[IgnoreDesc(B)]
First Node query:<query String> - -
Query Commands
addQuery No <query> All Nodes count:<count> Yes -
exists No <query> All Nodes retval:<boolean> - -
intersectX Yes - First Node count:<count> Yes TX
intersectYYes -First Nodecount:<count>Yes TY
load/pop No - None retval:<boolean> Yes -
newQueryNo<query>[,duration]Nonecount:<count> Yes -
reduceNodesNo-All Nodes count:<count>YesRN
save/push No - All Nodes retval:<boolean> - -
sortNo<type(S)>All Nodesretval:<boolean>YesST
viewGroup Yes [level(I)] First Node count:<count> Yes VG
waitQueryNo<query>[duration(I)] Noneretval:<boolean>--
Action Commands
clickYes -First Noderetval:<boolean>--
click2Yes-First Noderetval:<boolean>--
forEachNo<action|JSON name>All Nodesretval:<name>:[[...]]--
functionNo<name + arg>Noneretval:<boolean>--
funcExistsNo<name>Noneretval:<boolean>--
funcDeleteNo<name>Noneretval:<boolean>--
funcResetNo-Noneretval:<boolean>--
longClickYes-First Noderetval:<boolean>--
nsClickYes -First Noderetval:<boolean>--
repeatNo<count, action|JSON>None retval:<name>:[[...]]--
refreshYes-All Nodes retval:<boolean>--
scrollIntoViewYes<query>[direction(S)]Noneretval:<boolean>Yes-
sendKeyNo<code(I)> [meta(I)]Noneretval:<boolean>--
setCheckedYes<boolean>All Nodes retval:<boolean>--
setProgressYes<value(F/I)>First Noderetval:<boolean>--
setTextYes<text(S)>First Noderetval:<boolean>--
showOnScreenYes-First Noderetval:<boolean>--
sleepNo<duration in ms(I)>Noneretval:<boolean>--
untilYes<option> <arg>Noneretval:<boolean>--
Other Commands
versionNo-Noneretval:<version number>--
openAppNo<name>(S)>Noneretval:<boolean>--
restartAppNo<name>(S)>Noneretval:<boolean>--
closeAppNo[<name>(S)>]None retval:<boolean>--
openAndroidSettingNo<setting(S)>Noneretval:<boolean>--
listAndroidSettingsNo-Nonelist:[<settings>]--
getConfigNo<name(S)>Nonename: <name>, value: <value>--
setConfigNo<name(S)> <value(*)>Noneretval:<boolean>--
unsetConfigNo<name(S)>Noneretval:<boolean>--
(S) - String, (I) - Integer, (B) - Boolean, (F) - Float, (*) - All types
[Optional Arguments] or <name>:[<return array>]
device/devices.sendAai({query:<query>, action:<command>})
device/devices.sendAai({query:<query>, actions:[<command>]})

Support

Please send email to support@sigma-rt.com for support and feedbacks.
