To control 70 devices, the following computer configurations are recommended ( How to check the computer configuration )
|CPU||i7 (Intel I9700 series) or higher|
|Memory||8G or more|
|Motherboard||ASUS large boards with USB 3.0 or USB 3.1 ports
* Usually the usb connector on the back of the host is black for USB 2.0, blue for USB3.0, blue-green or red for USB3.1
|Operating System||Recommended for Win10
* Win7 must turn off the motherboard xHCI mode to avoid the limitation of the number of cell phones connected to the computer
|USB Interface||1 USB bus (USB3.0/USB3.1) + 1 PCIE card / 2 PCIE cards Either one
* PCIE cards are recommended to use USB 3.1 interface with independent power supply.
* The 11th-gen or 12th-gen CPU using the new motherboard do not support the PCIE card, please consult the sales service before purchasing.
|* The USB3.0/USB3.1 bus that comes with the computer motherboard supports up to 40 devices (e.g. the computer motherboard comes with multiple USB3.0 ports and only supports 40 devices in total). To control 70 devices, you also need a PCIE expansion card (1 card supports 40 devices) that plugs into the PCIE slot on the motherboard to expand the available USB ports.|
Total Control is compatible with Android devices of all brands and manufacturers, but to simplify your work and avoid unnecessary debugging processes, we recommend:
Tip: You can first acquire a device, connect it to Total Contol and test it correctly, then make a bulk acquisition.
7 * 10-port + 2 * 7-port / 3 * 20-port + 1 * 10-port / 4 * 20-port HUB hub, select one of three. To connect 70 devices to the computer, you need to use a HUB hub (also called splitter), the higher the current of the single port of the HUB, the better, more than 20 ports will cause dropouts due to insufficient power supply, it is recommended to use seven 10-port HUBs to connect the devices, and then connect the HUB to the USB3.0/USB3.1 interface (including the USB interface for PCIE card expansion) at the back of the computer case, the computer's If the USB port of the computer is not enough, two 7-port HUBs are needed as adapters. Note: Please choose a good quality USB cable for the connection to avoid disconnection of the device.

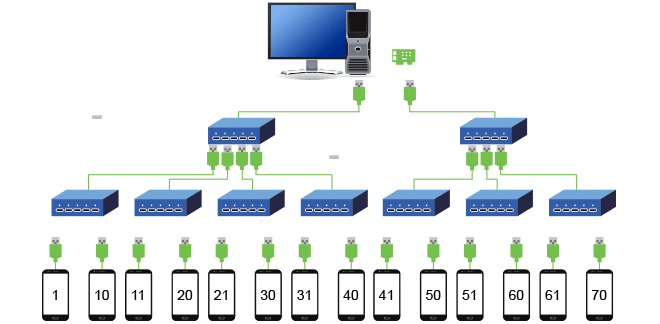

Please follow the diagram below to install the hardware, Watch the video
After the hardware is installed, we can install and debug the software.
